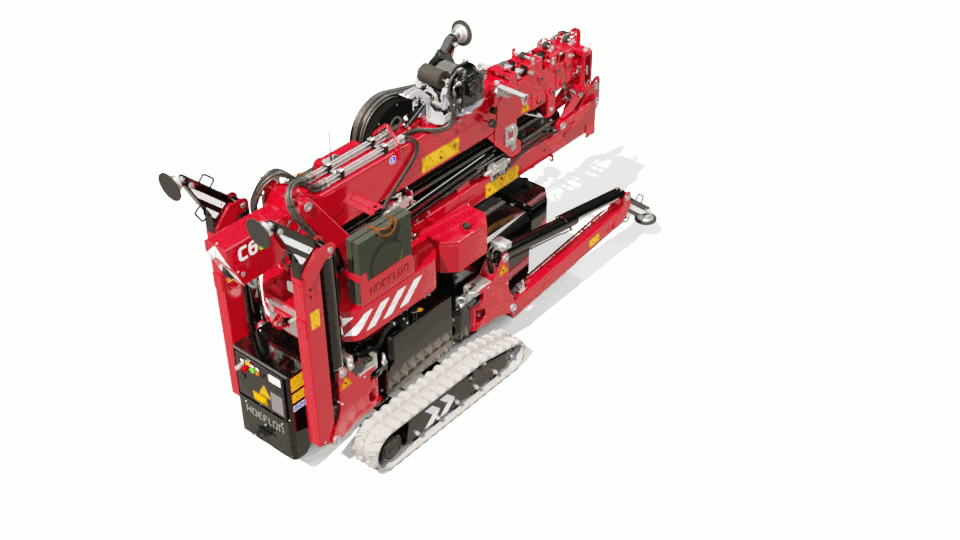

Mini crane Hoeflon C6

Powerful all-rounder

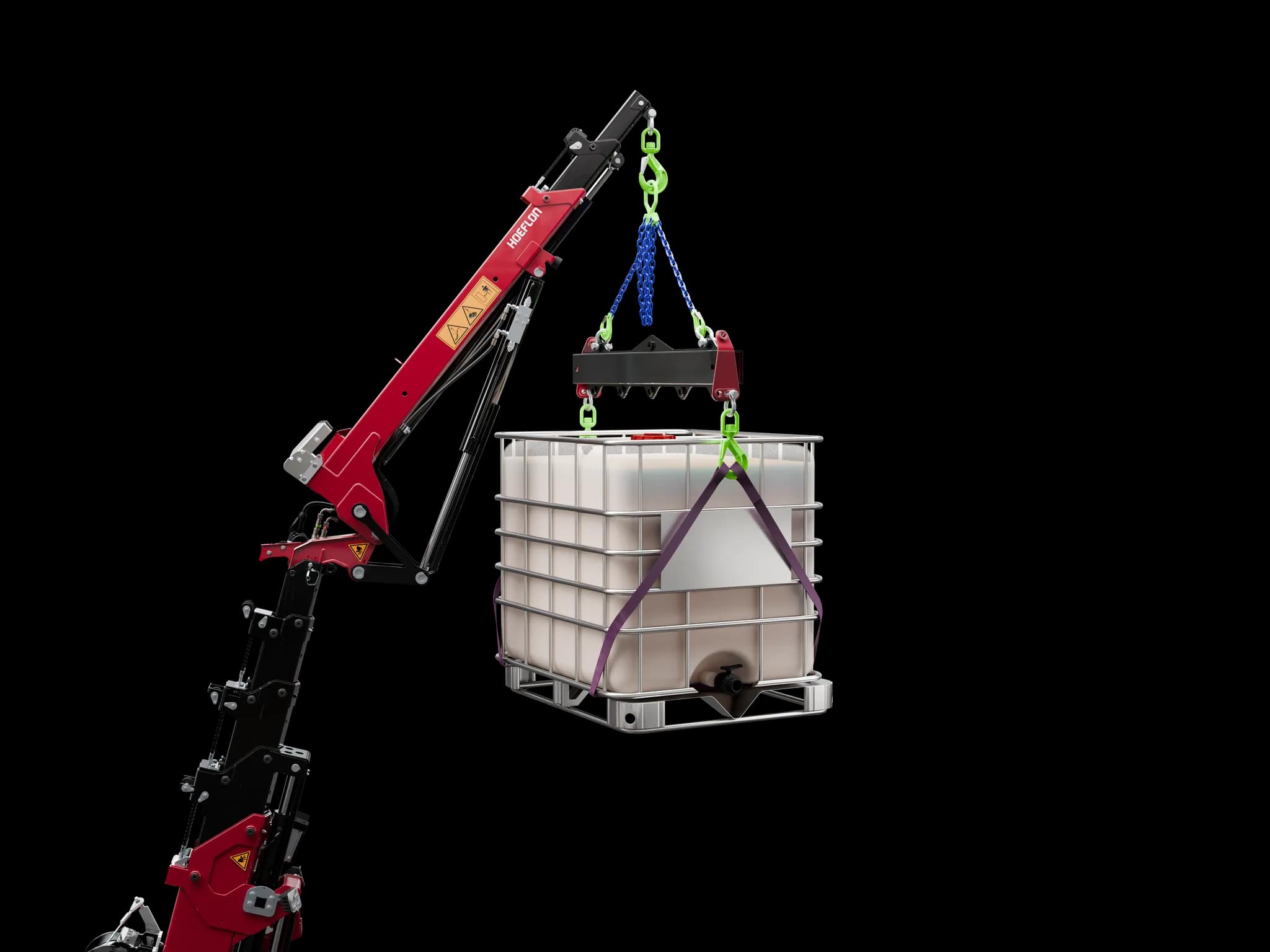

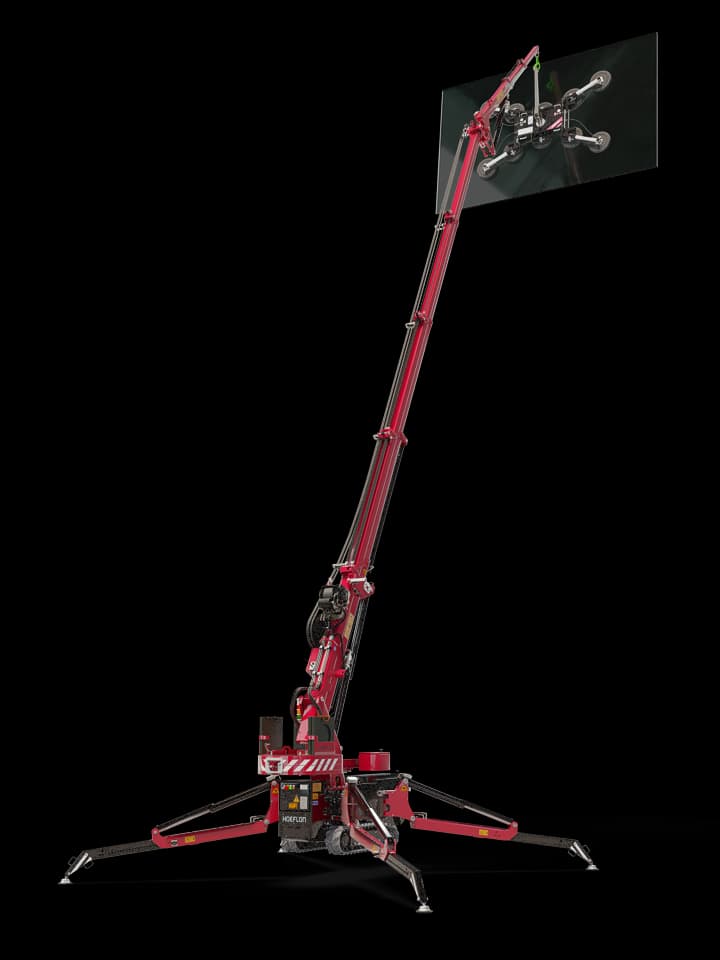

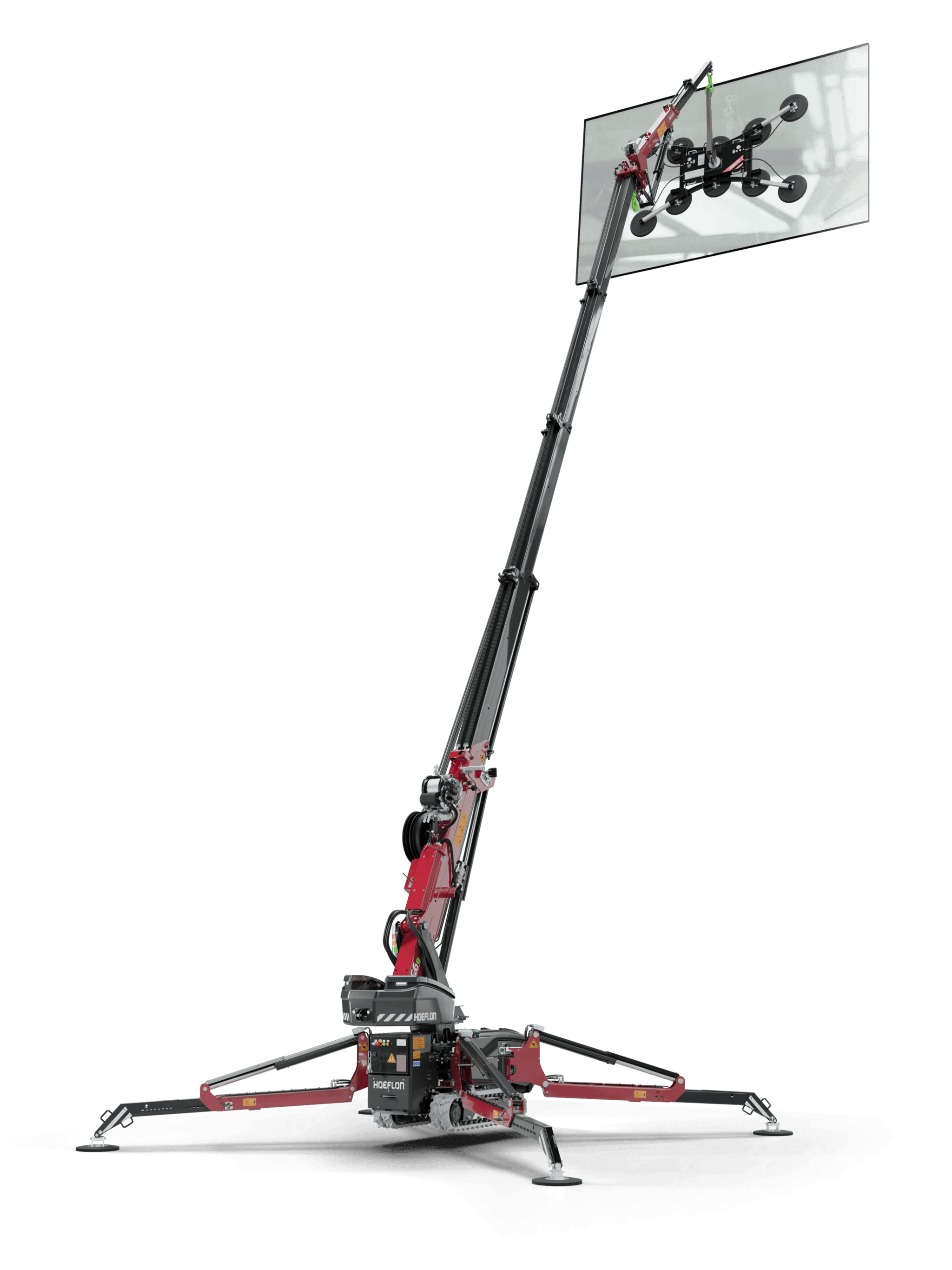

Multifunctional, robust and very simple operation – that’s the C6 compact crane in a nutshell. It’s a best seller in the mini crane category. This crane is ideal for placing glass and accurately positioning steel beams.

It is the only compact crane which can lift more than its own weight. This makes it possible for one crane to lower another into an underground space.

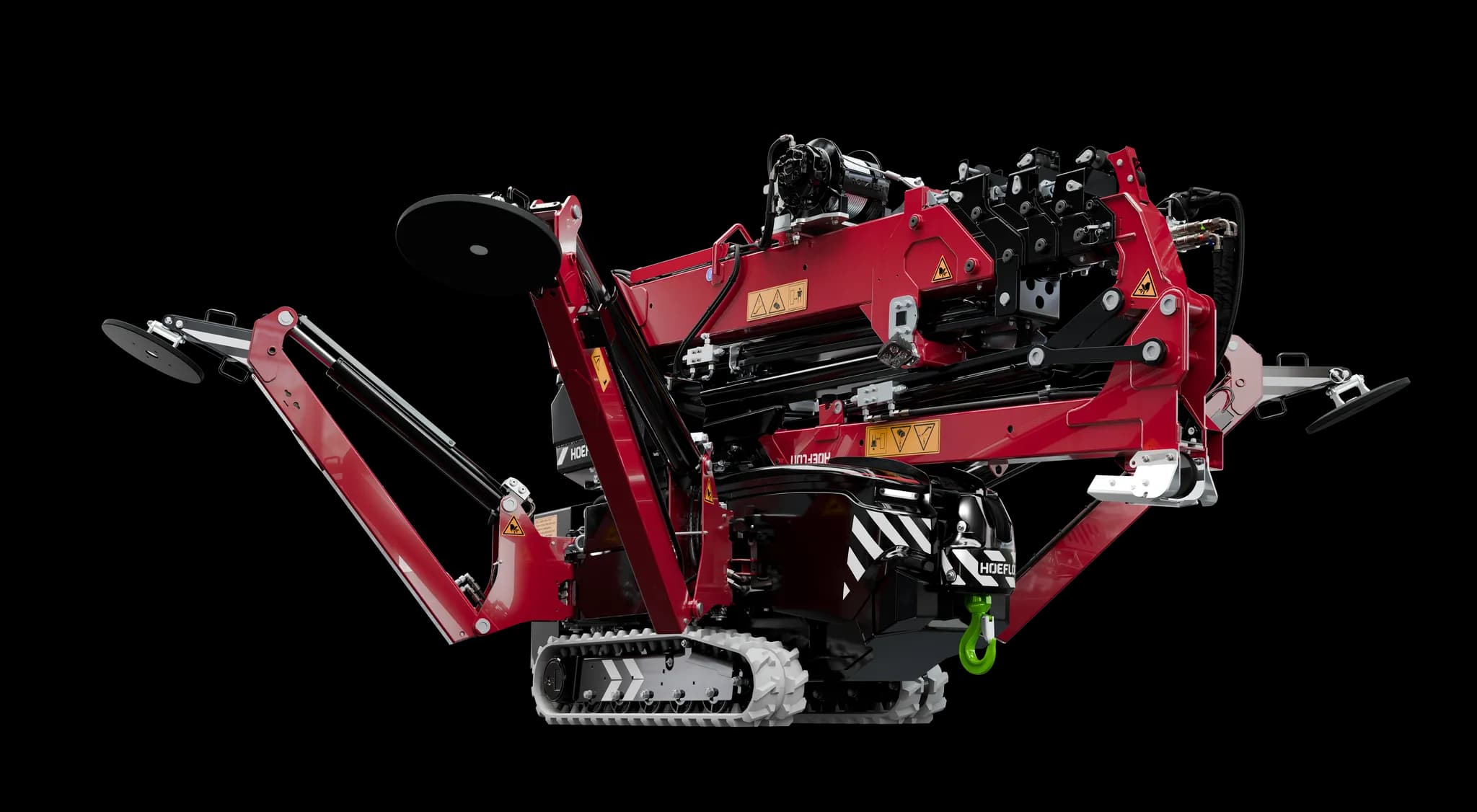

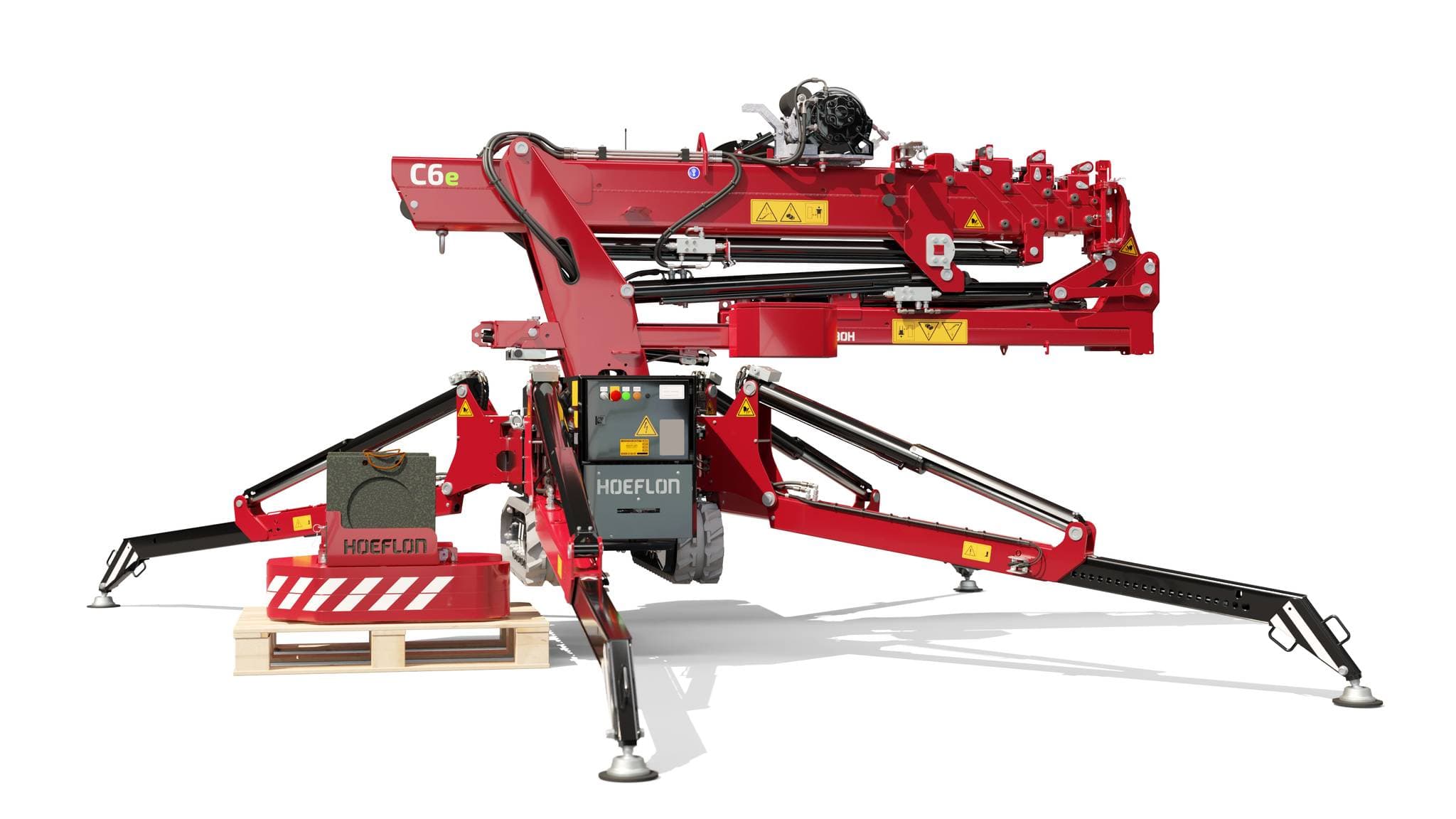

C6e - Fully electric

The C6 is now also fully electric. With a 60% duty cycle you can run for eight hours with the crane. The crane is recharged in five hours. Charging and working at the same time is possible. The electric version does not lose any speed compared to the diesel version, it is even a bit smoother.


The used battery cell is LiFePO4. This composition has many advantages. Especially the safety compared to other Li-ion batteries. The LiFePO4 battery cells cannot ignite or explode during charging / discharging. The battery has a long lifespan and can often be discharged and recharged with minimal performance reduction. This composition is environmentally friendly because it contains no toxic heavy metals. The cell can be exposed to high temperatures.

This makes the C6 strong:

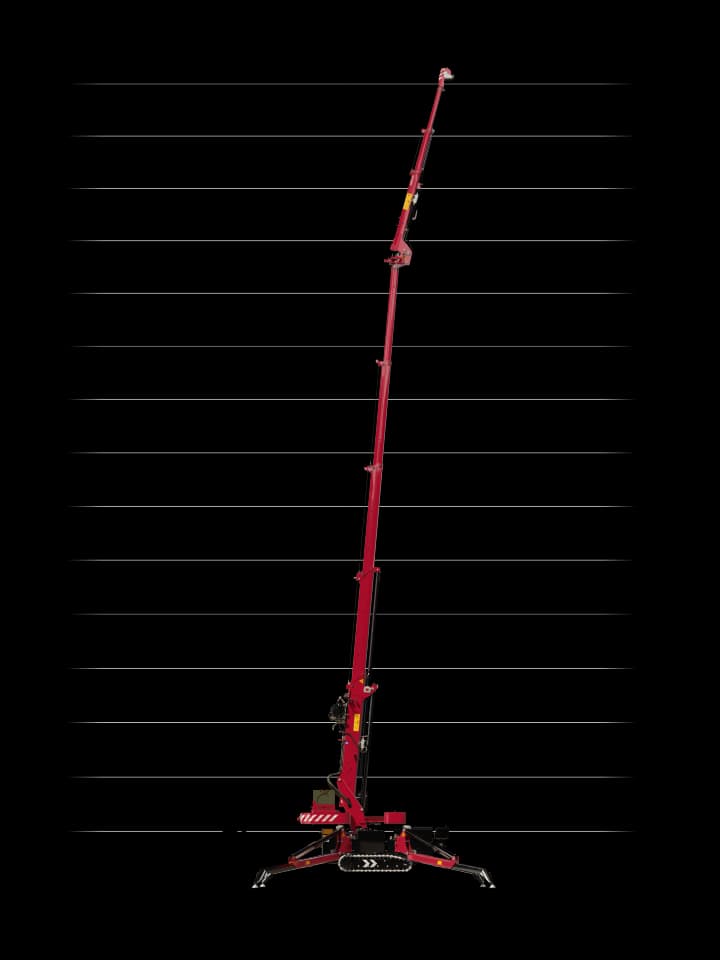

  • Up to 16 metres
    lifting range

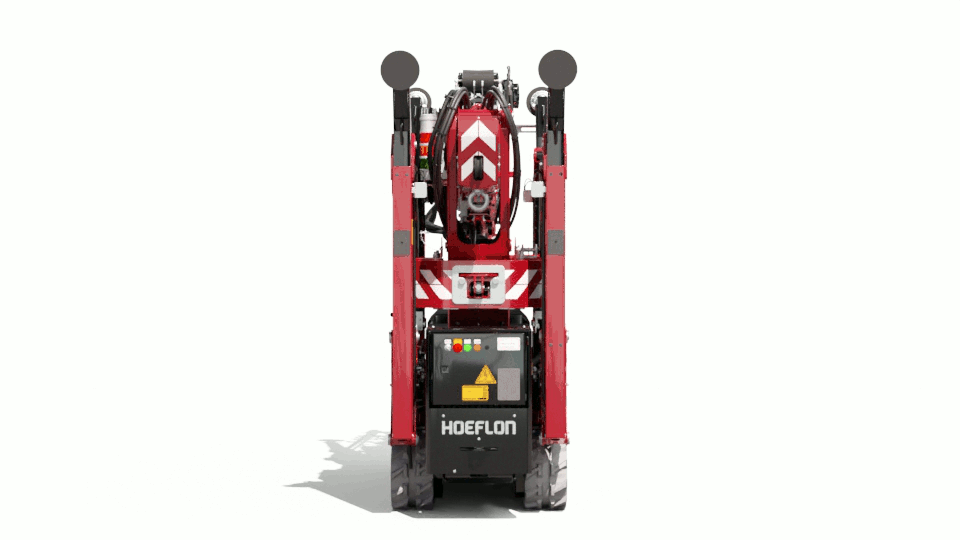

  • Goes anywhere
    through any door

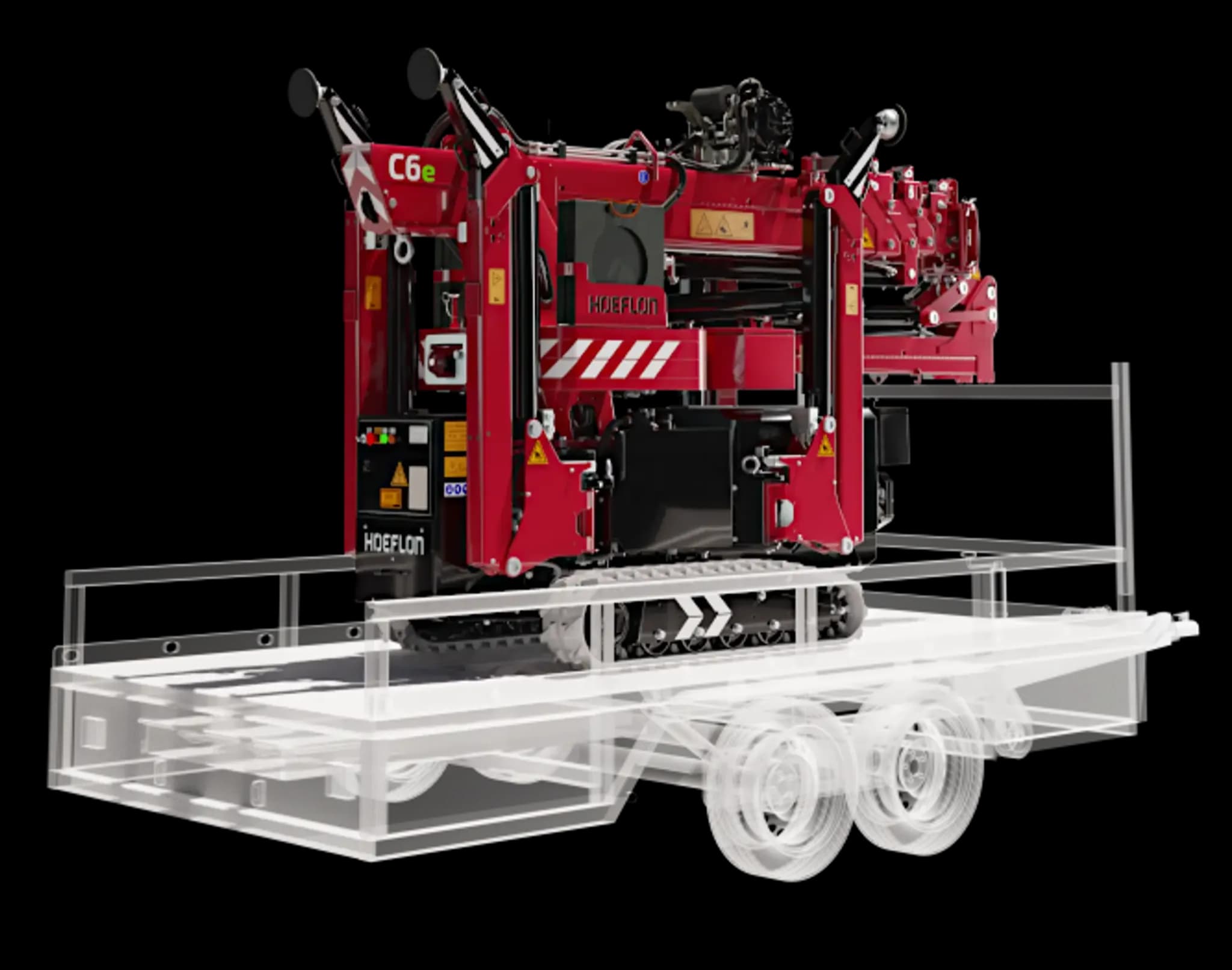

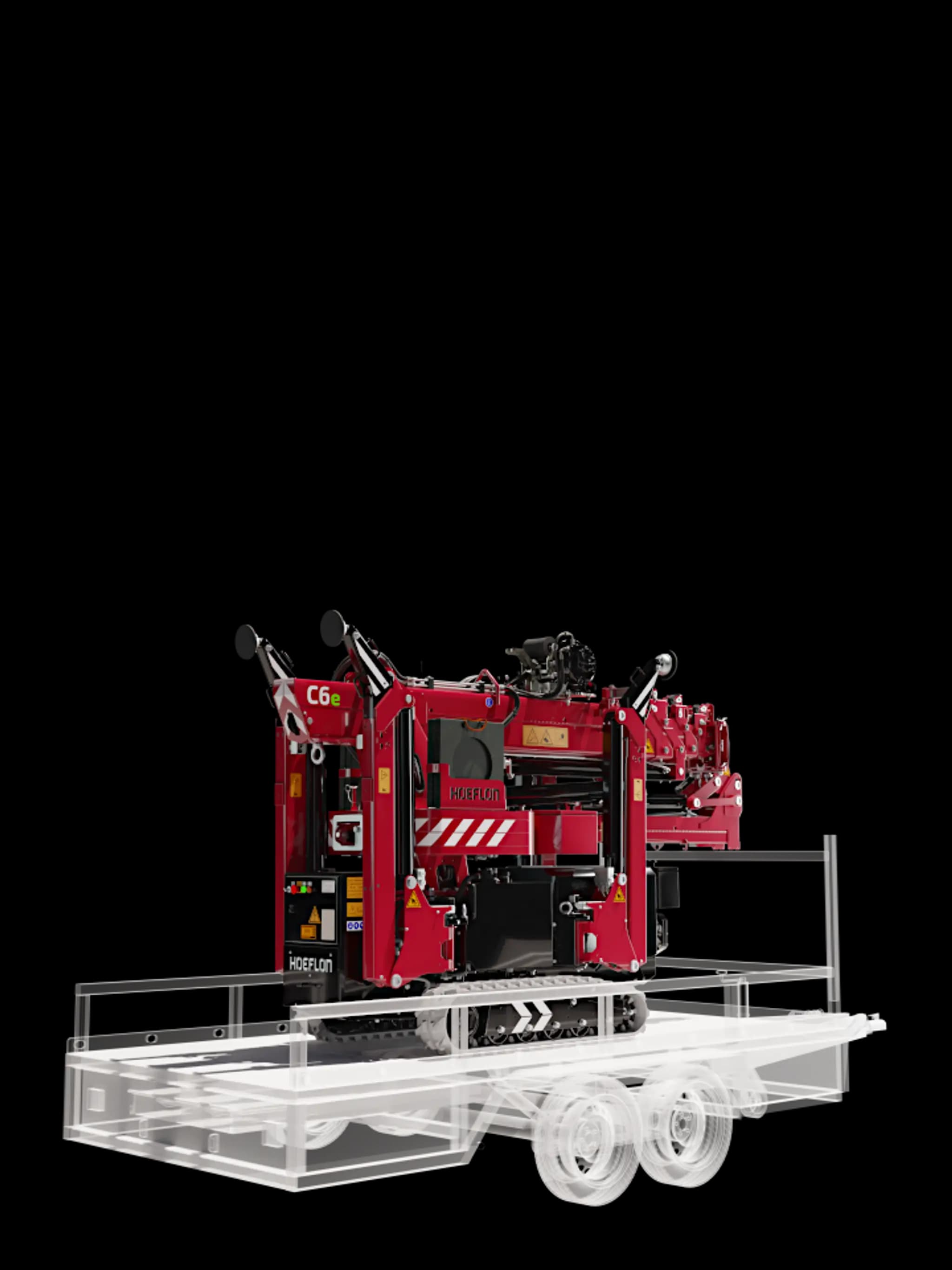

  • Easy to transport
    Drive it on a trailer and go
  • Reliable
    years of experience
  • 'Smart' cranes
    intelligent software



Capacity

3000 kg

Max. outreach

13.7 m x 210 kg

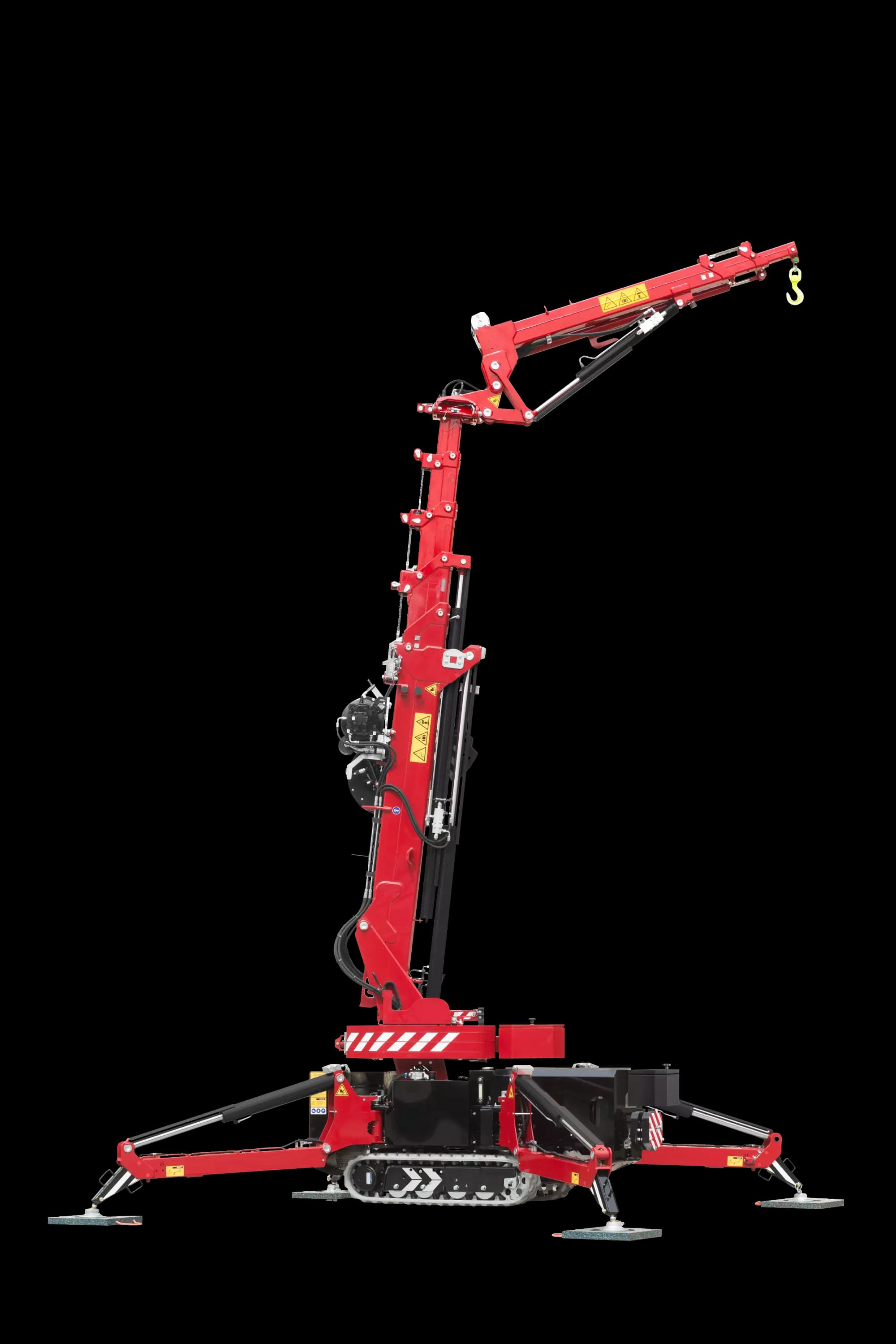

Maximum hoisting height

11,5 m and 16 m with options

Dimensions L x W x H

2.9 m x 0.75 m x 1.82 m

Dimensions including winch and jib

3.14 m x 0.75 m x 1.95m

Total weight

2650 kg 2850kg incl. options

Winch

1000 kg, 2000 kg and 3000 kg

Boom system

Cylinder and chain system

Boom angle

-5 – 83 degrees

Slewing

360 degrees

Drive system

via remote control 1st gear: 1.1 km/h 2nd gear: 2.2 km/h

Engine

Yanmar 3 cylinder, 1500 rpm

Incline angle

20 degrees

Ground pressure

0.79 kg/cm2

More information: brochure



Electric motor

230 V

Fly jib length

4.3 m

Hoisting winch

1000 kg, 2000 kg and 3000 kg

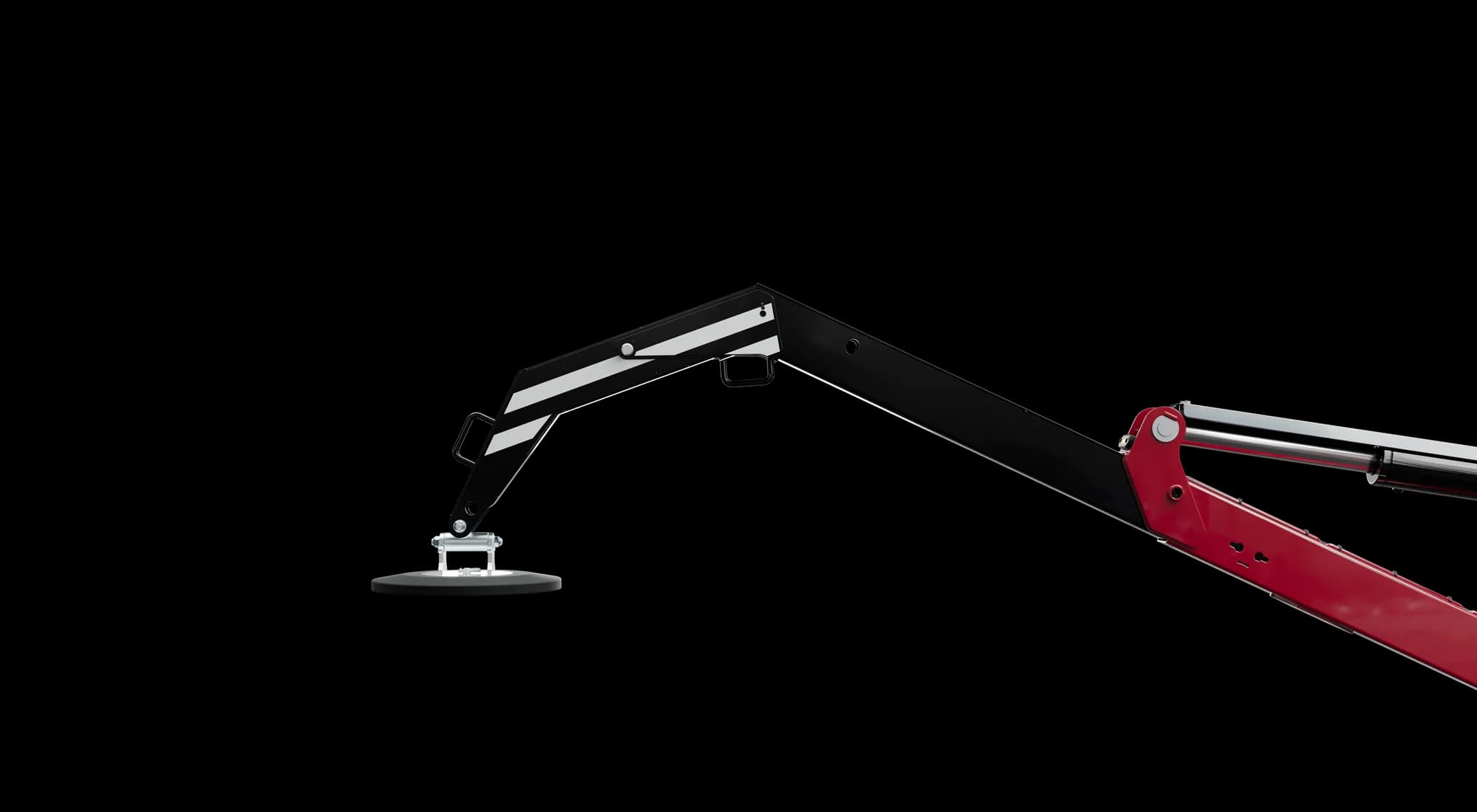

Extension section

30-degree range of motion

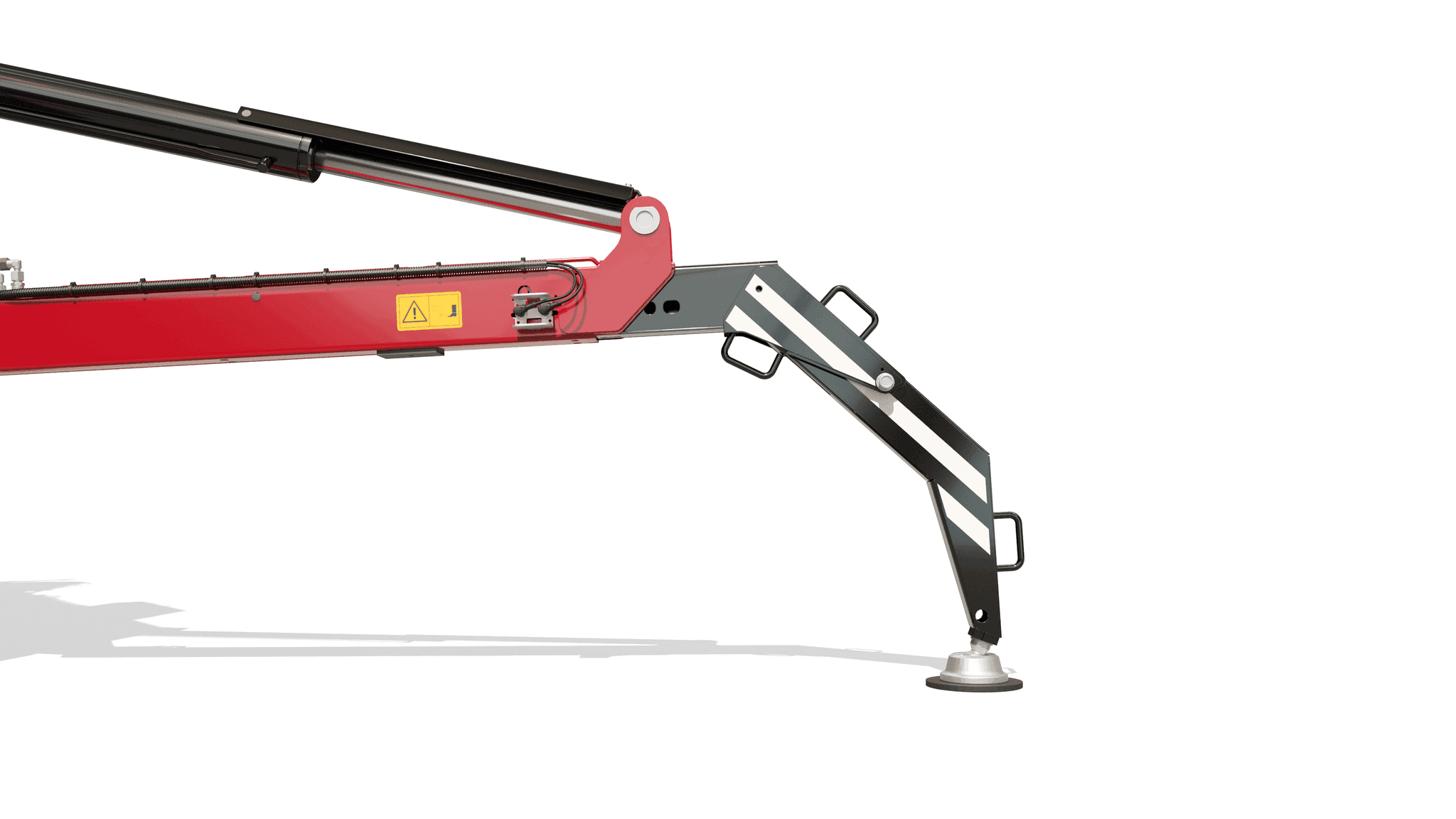

Levelling jacks

position measurement values for steplessly swivelling jacks

Levelling jacks

hydraulically extending

Tracks non-marking
Lighting

work light on boom and jib

Storage box

extra storage case

Actuator

900 to 1700 rpm

More information: brochure
