Hoeflon TC1

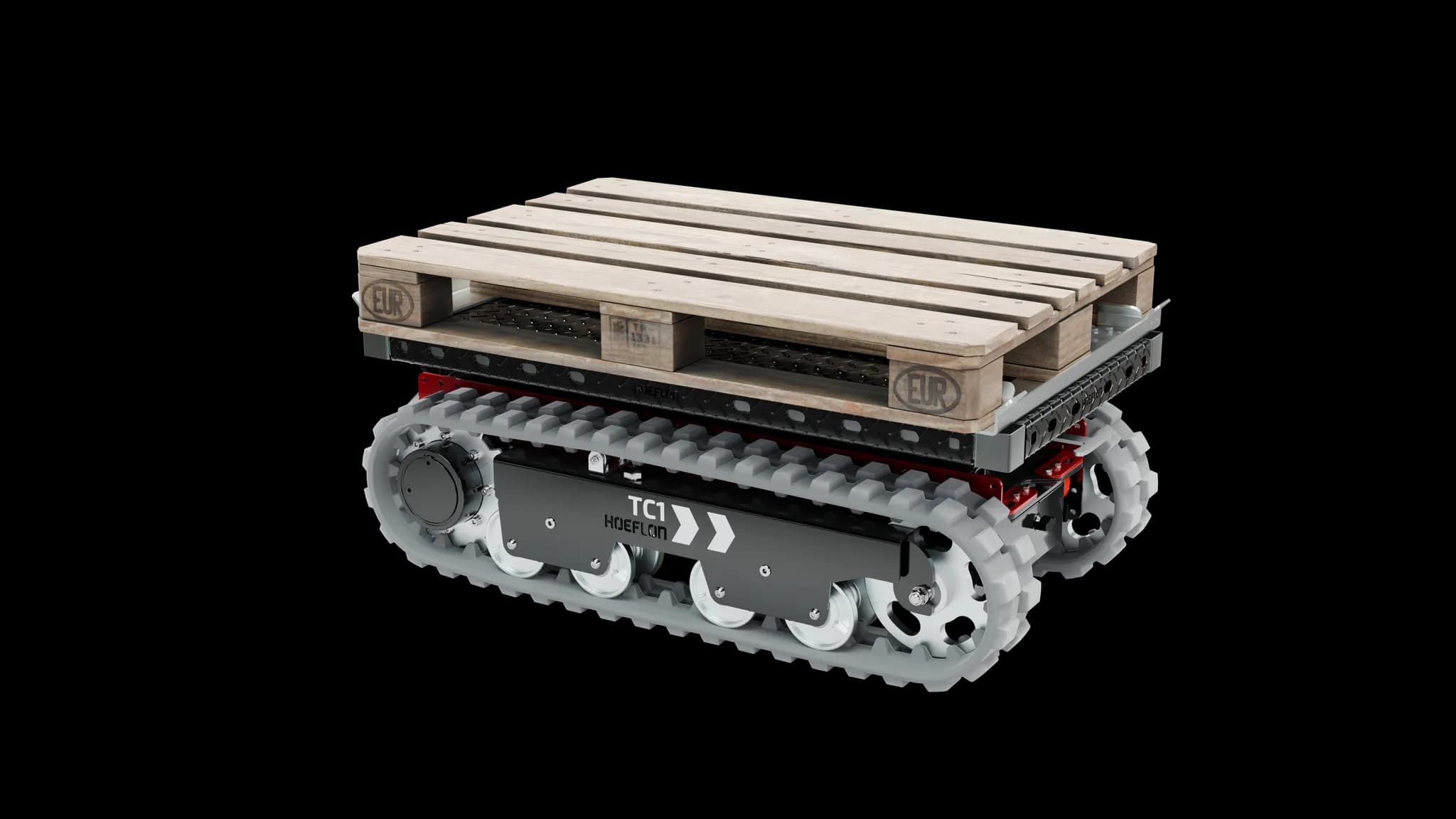

Hoeflon TC1 transport carrier

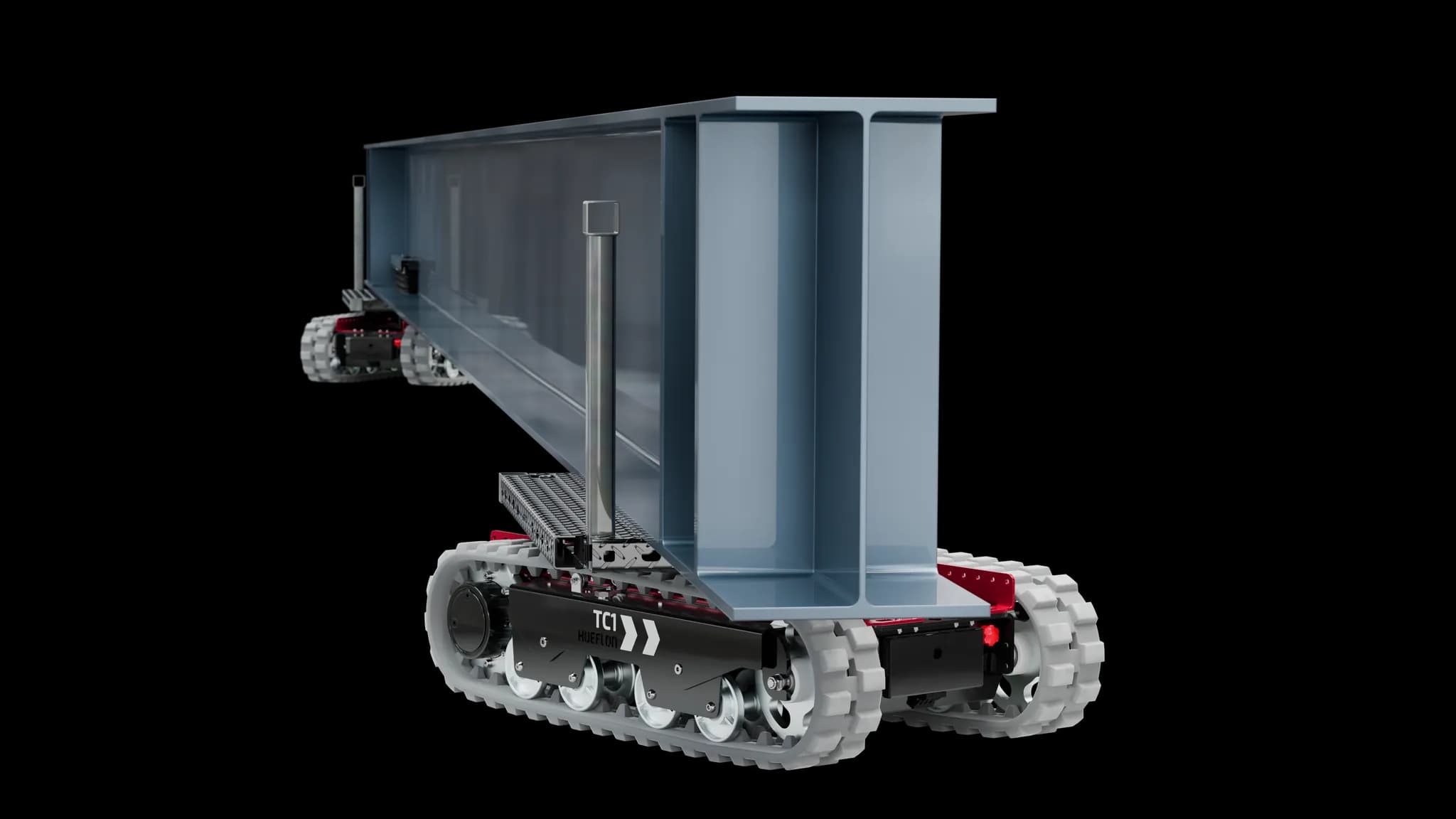

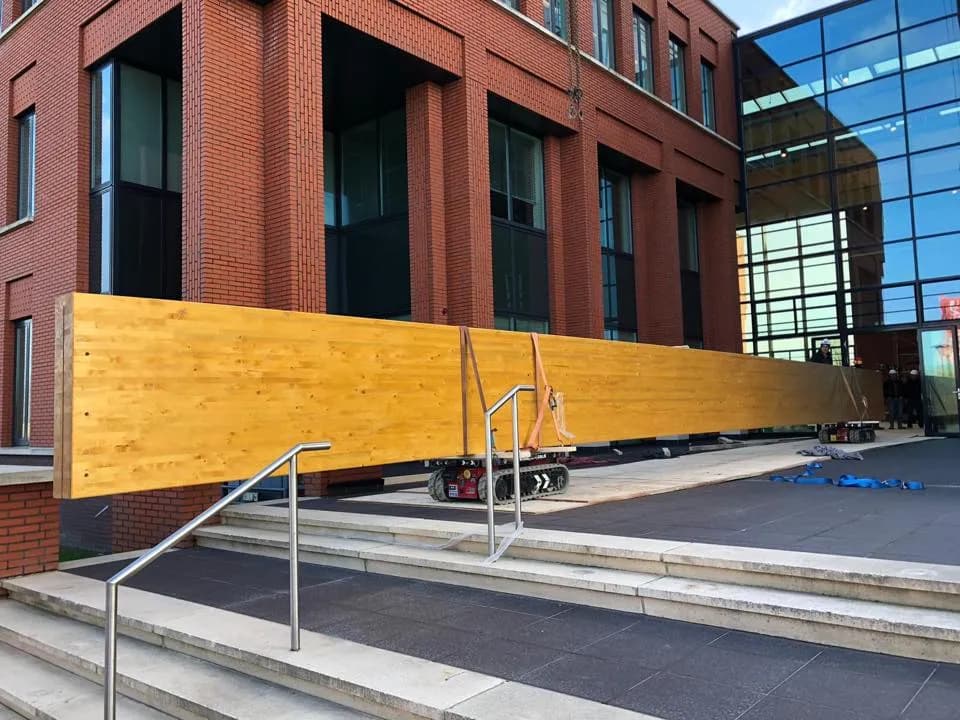

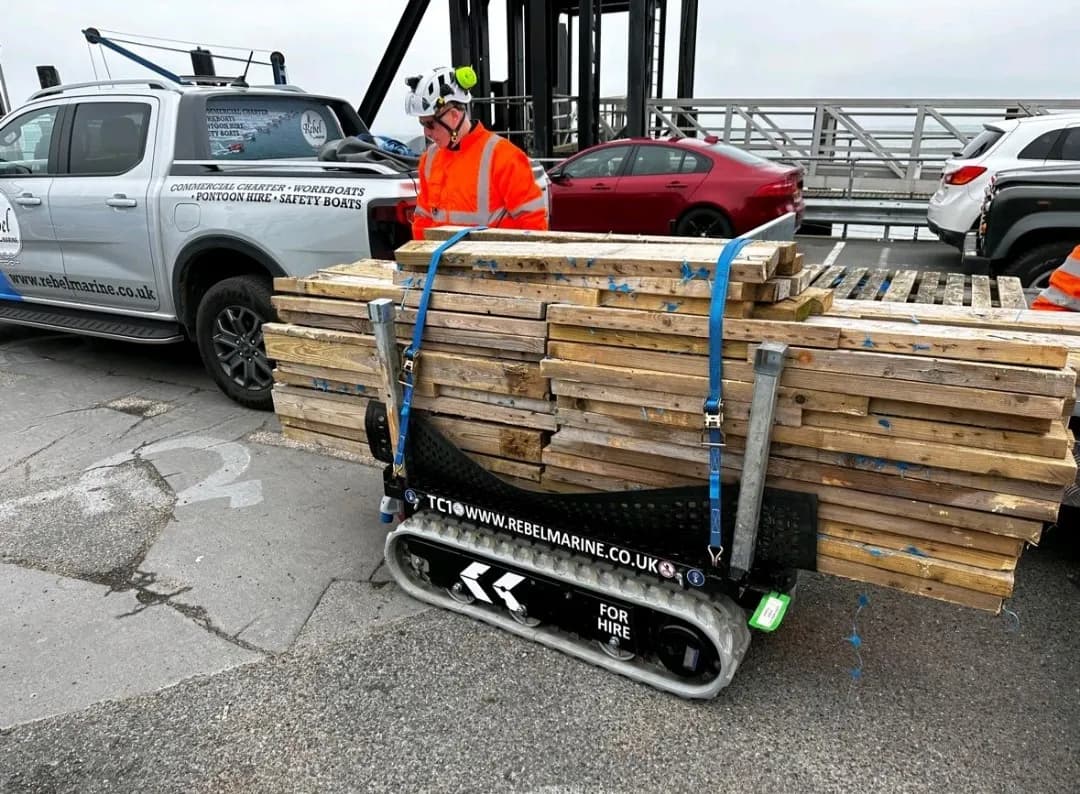

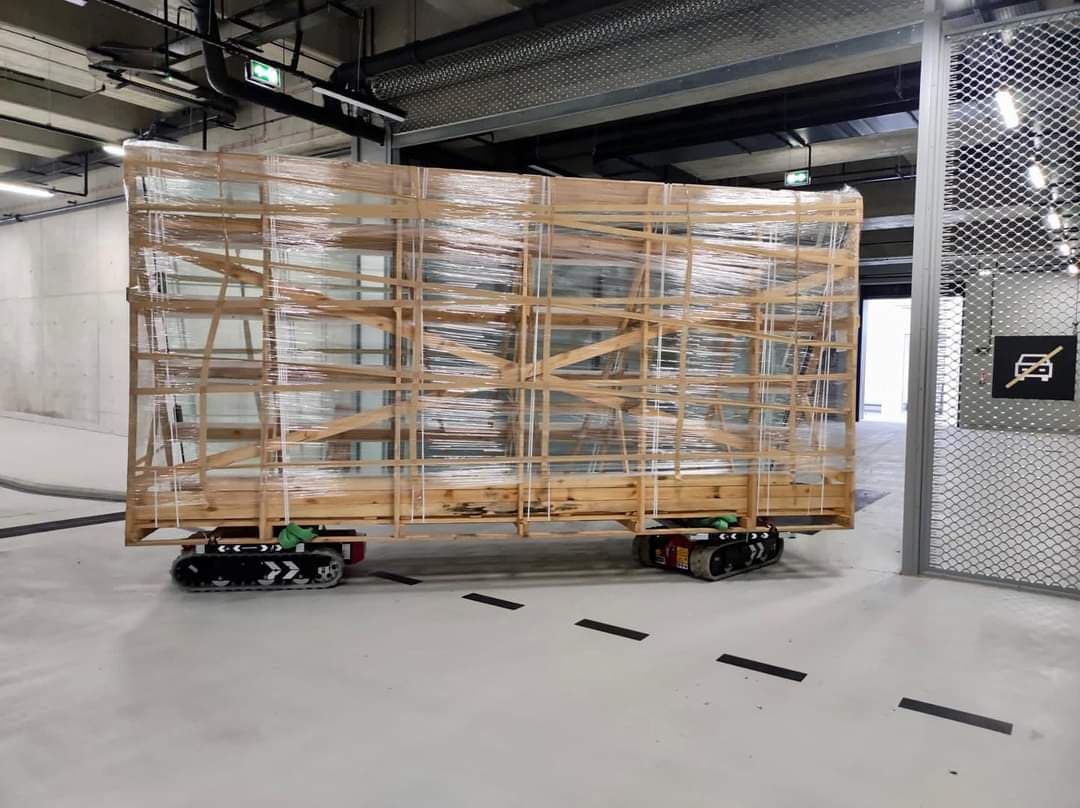

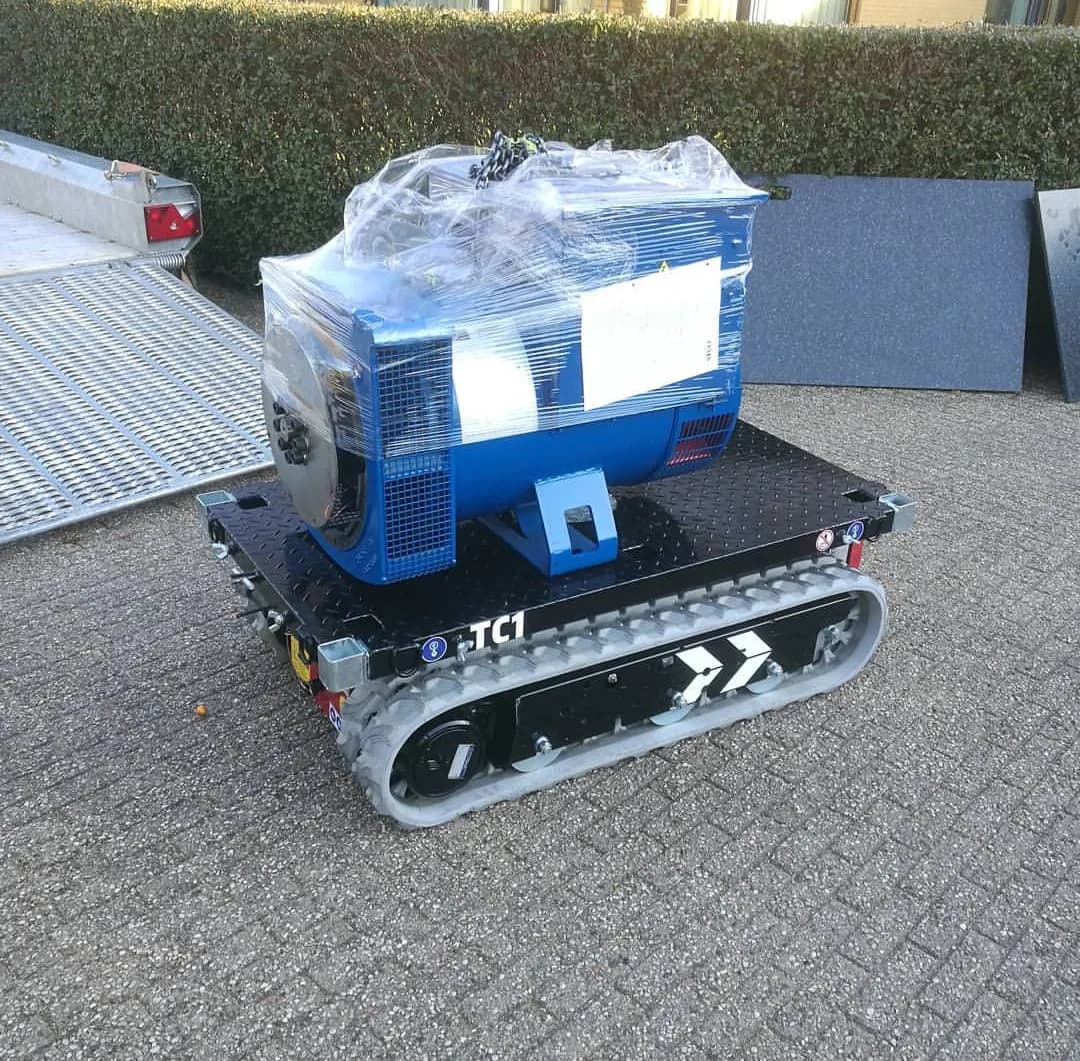

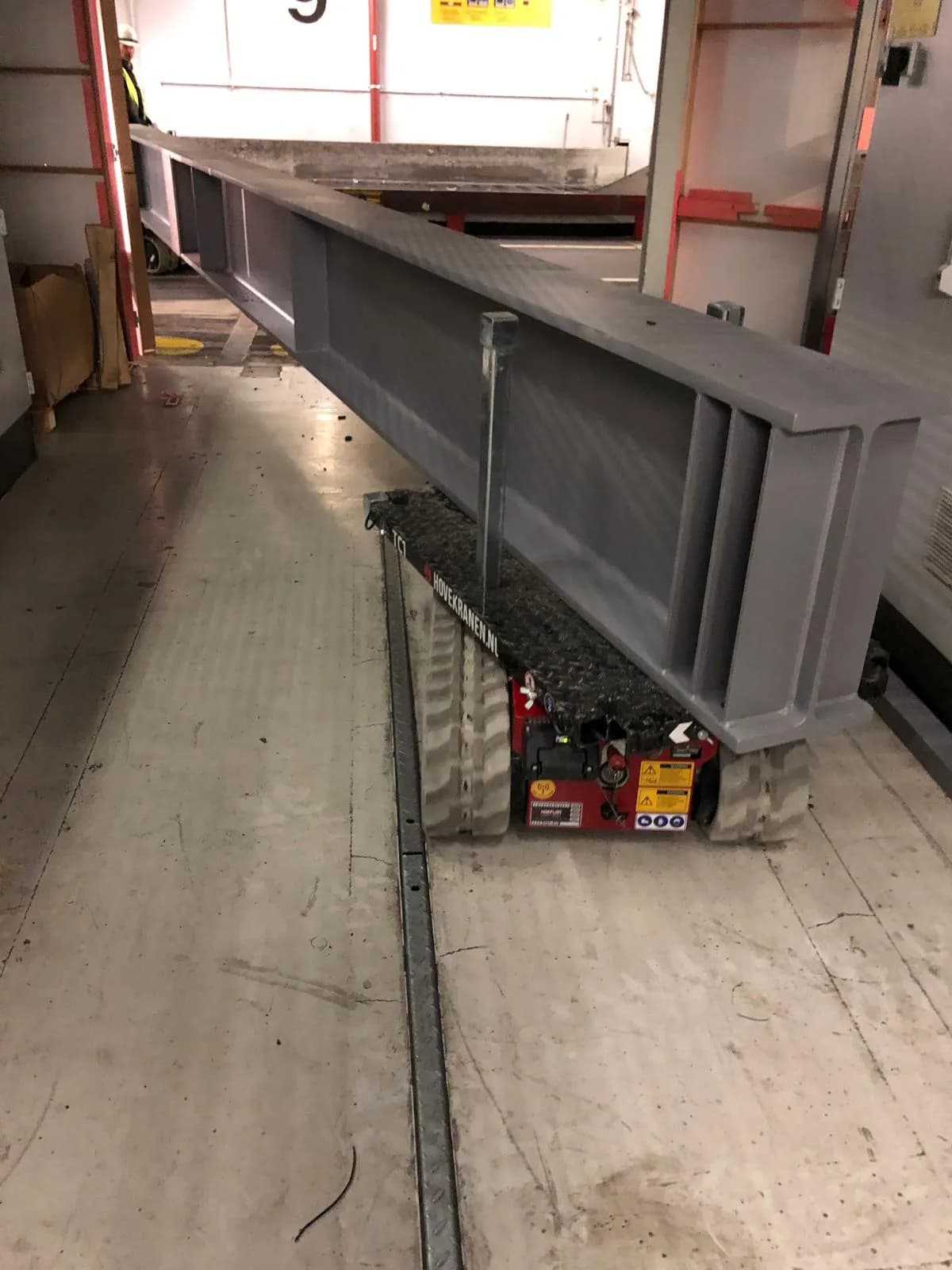

Our transport carrier, the Hoeflon TC1, can pass through any door. Wherever your goods are located, our dolly gets there.

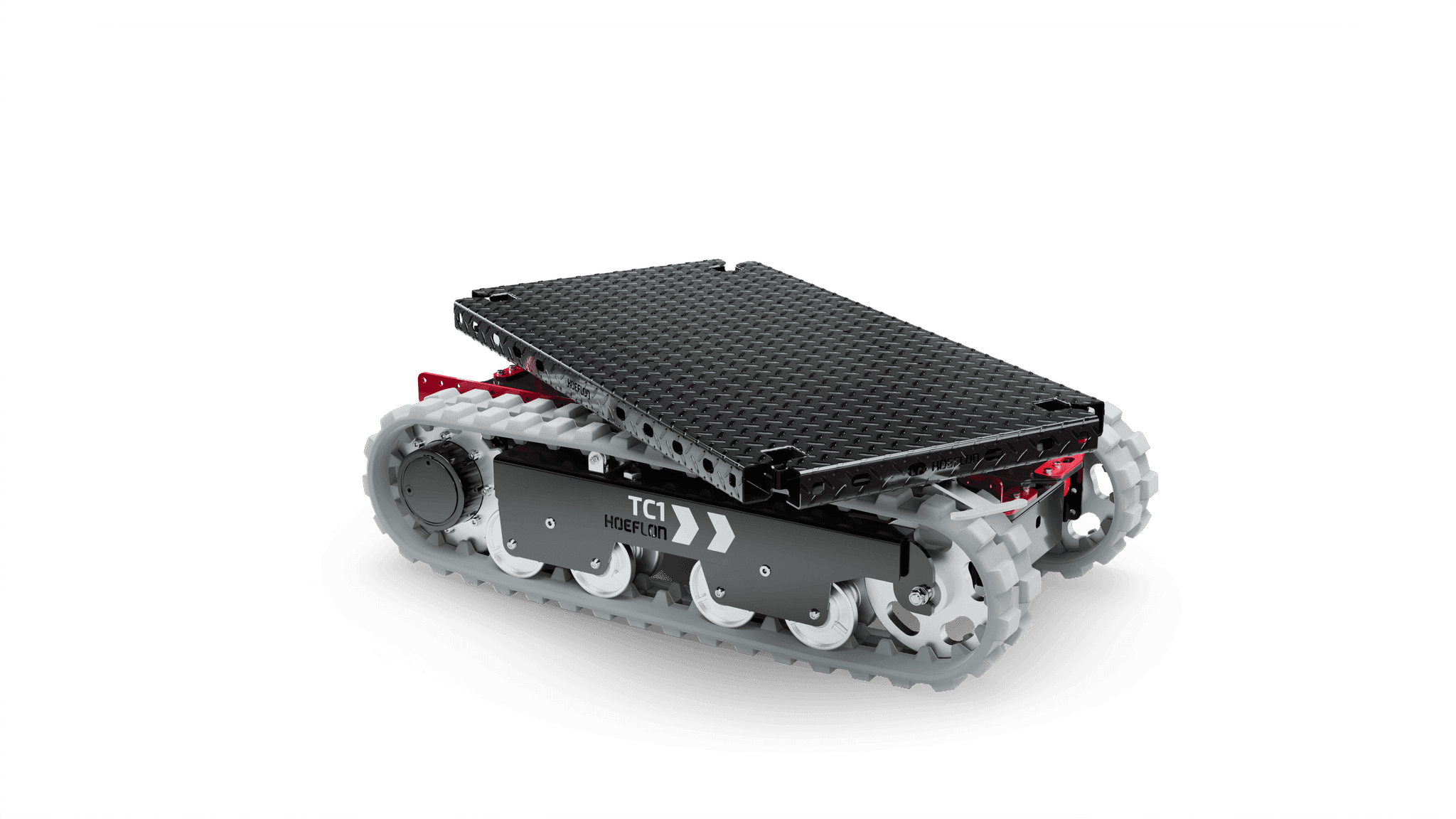

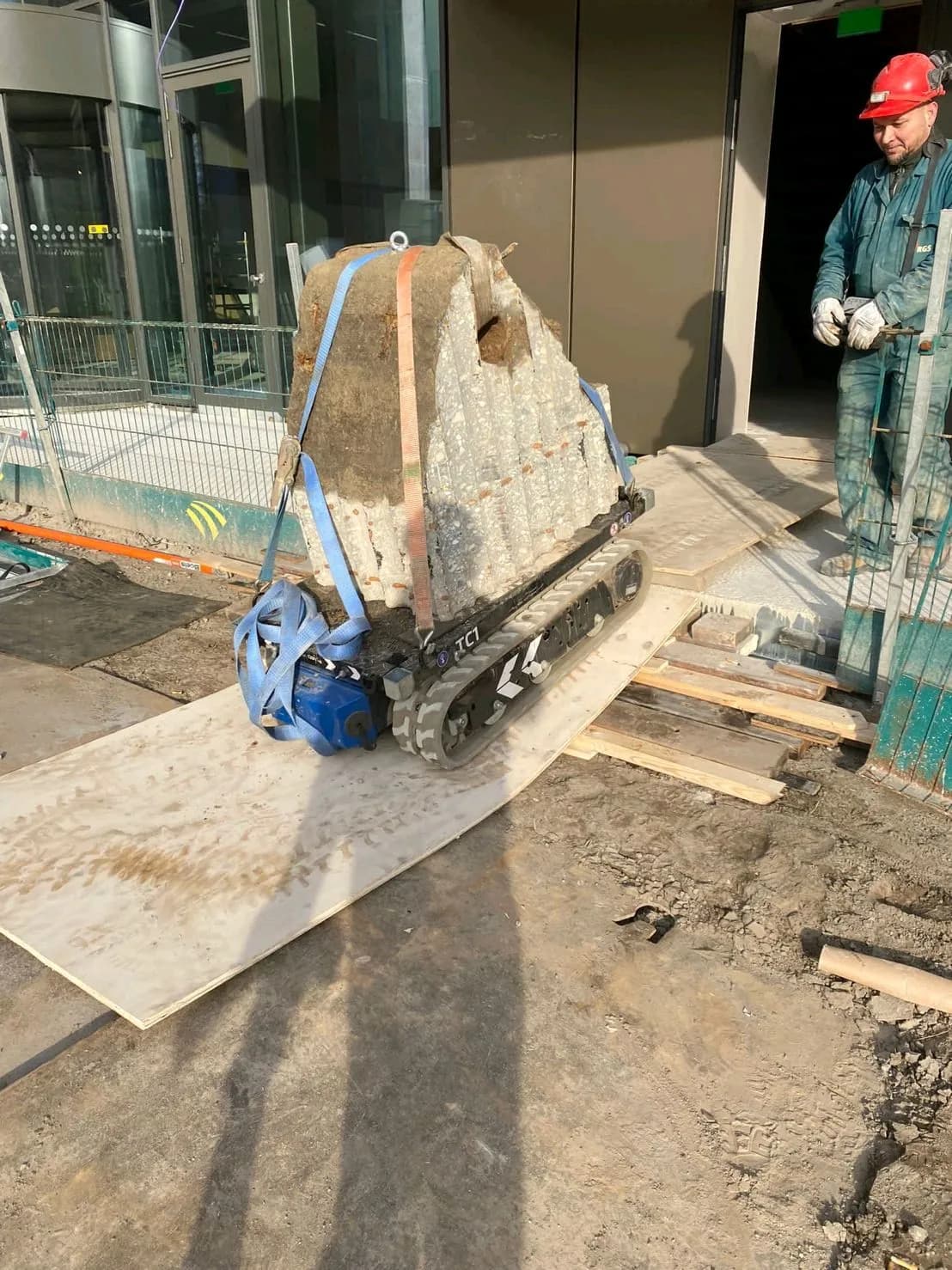

The TC1 has a rotating plateau, 40 centimetres high. It has a low centre of gravity and features precise manoeuvring. It easily drives around bends, even with a load. The TC1 can also drive up very steep inclines.

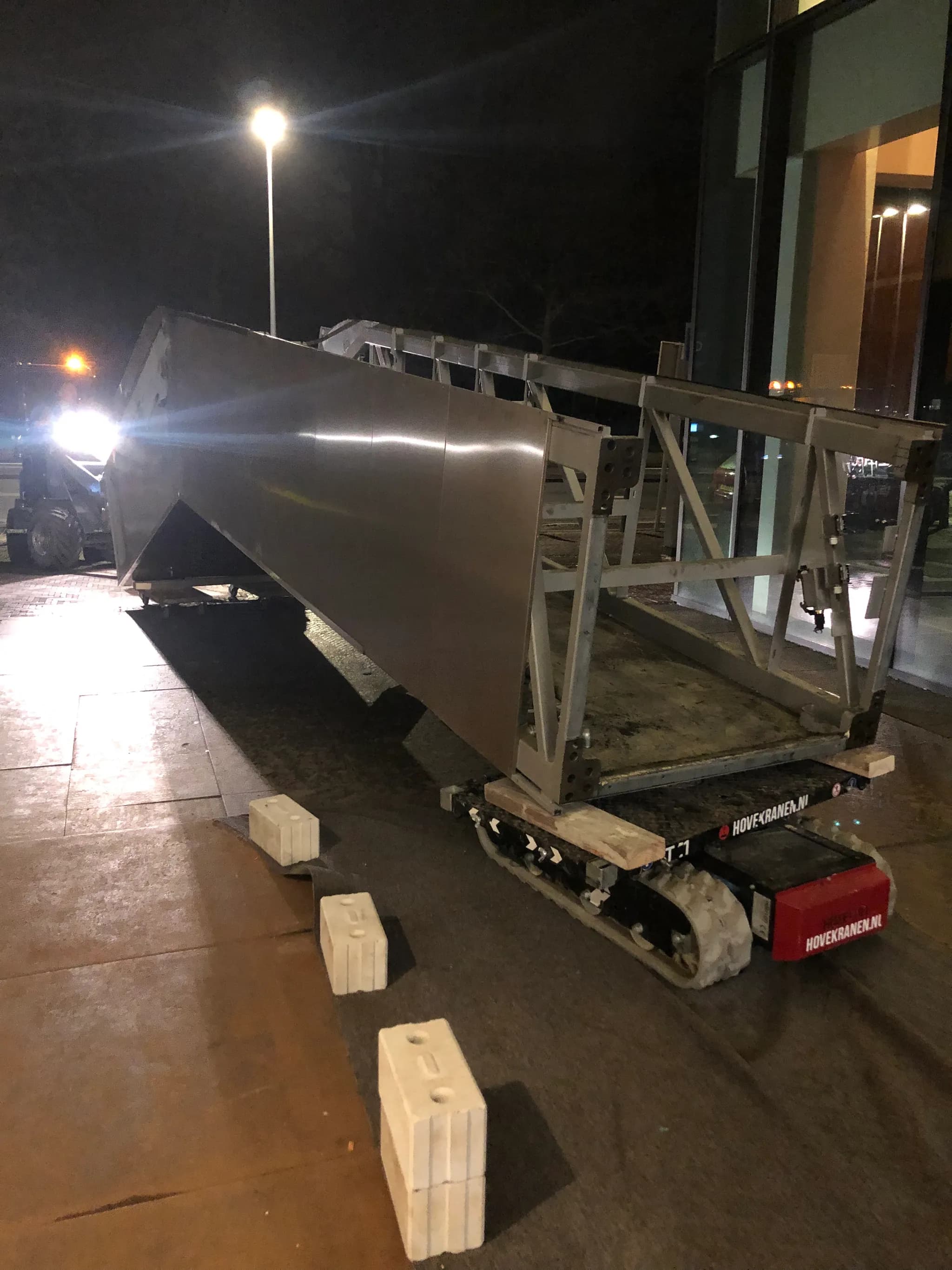

It’s an ideal machine in combination with the crane.

This makes the TC1 strong:

  • Compact, strong and robust
  • Very precise maneuverability
  • It is easy to fasten the load
  • The platform is adjustable
  • Quiet, thanks to the electric drive
Capacity

1.200kg

Net weight

500kg

Dimensions (lxwxh)

1450x800x420mm

Drive

Electric

Power supply

Battery pack

Charger

230 V 50Hz

Charging time

13 hrs

Max. speed 2,2km/h
Ground pressure 0.15kg/cm2

More information: brochure

External power supply

230 V

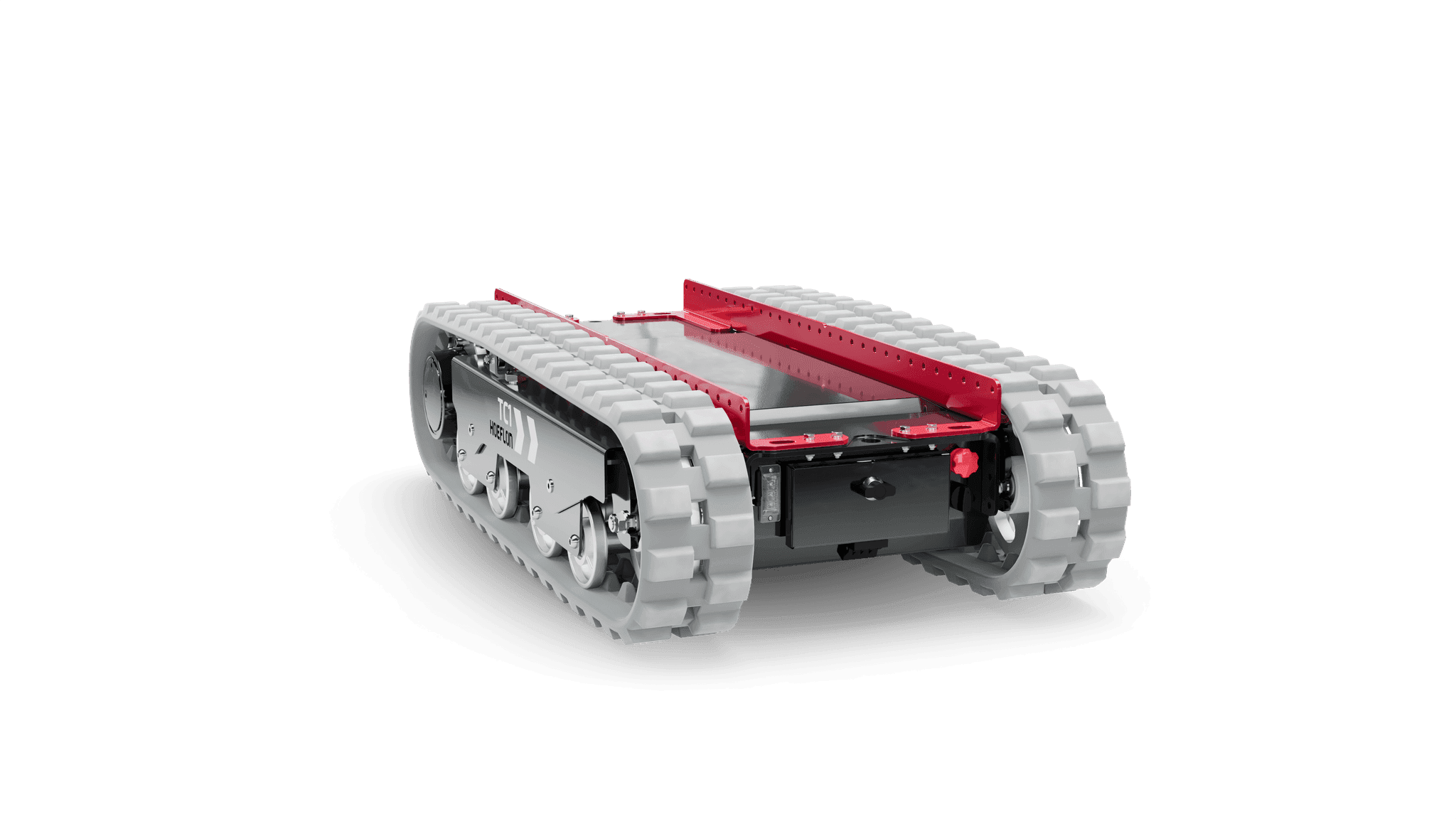

Platform

Limitless rotation with a lock every 90 degrees

Tracks

non-marking

More information: brochure
